Thread Rolling Electrical Control Panel
Overview
The Thread Rolling Machine Control Panel is a specially designed electrical panel made to control and monitor the operation of a thread rolling machine. Through this panel, the machine’s motor, load, and protection systems are automated and made safer.

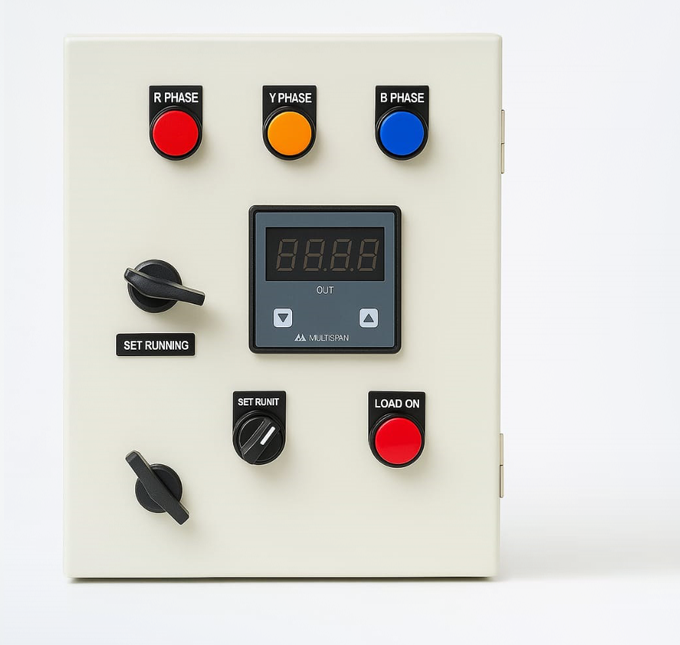

Key Features:
- Three Phase Indication (R, Y, B): Three separate indicators on the panel show the availability and health of each phase.
- Digital Display Meter: A high-accuracy digital meter is provided to monitor voltage, current, and load parameters in real-time.
Selector Switches:
- Main ON/OFF Selector – to operate the entire system.
- Set/Running Switch – for switching between setup mode and continuous running mode.
- Load ON Indicator: Shows indication when load is applied to the machine.

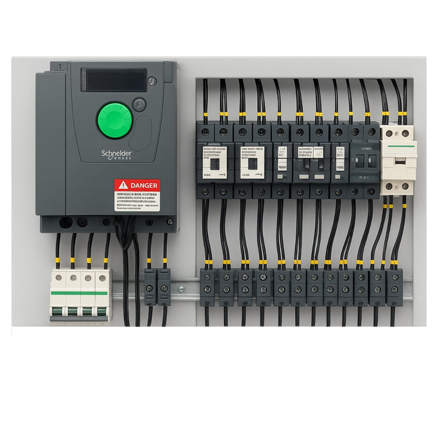

- High Safety Standards: Circuit breakers and protective devices are installed to protect both the machine and operator from over-voltage, short circuits, and overloads.
- Compact & Durable Design: Built with a powder-coated enclosure, ensuring long life and suitability for industrial environments.
Applications:
- Thread Rolling Machines
- Industrial Manufacturing Units
- Heavy-duty Mechanical Workshops
Advantages:
- Easy operation and monitoring
- Protection from electrical faults
- Enhances machine performance and lifespan
- User-friendly design with clear indicators
